Special Solution Brinell Hardness Testing System
Special Solution Brinell Hardness Testing System


This customer with thousands of employees worldwide was looking for an automated solution for the extremely labour-intensive and difficult inspection and testing work on their products weighing up to eight tons.

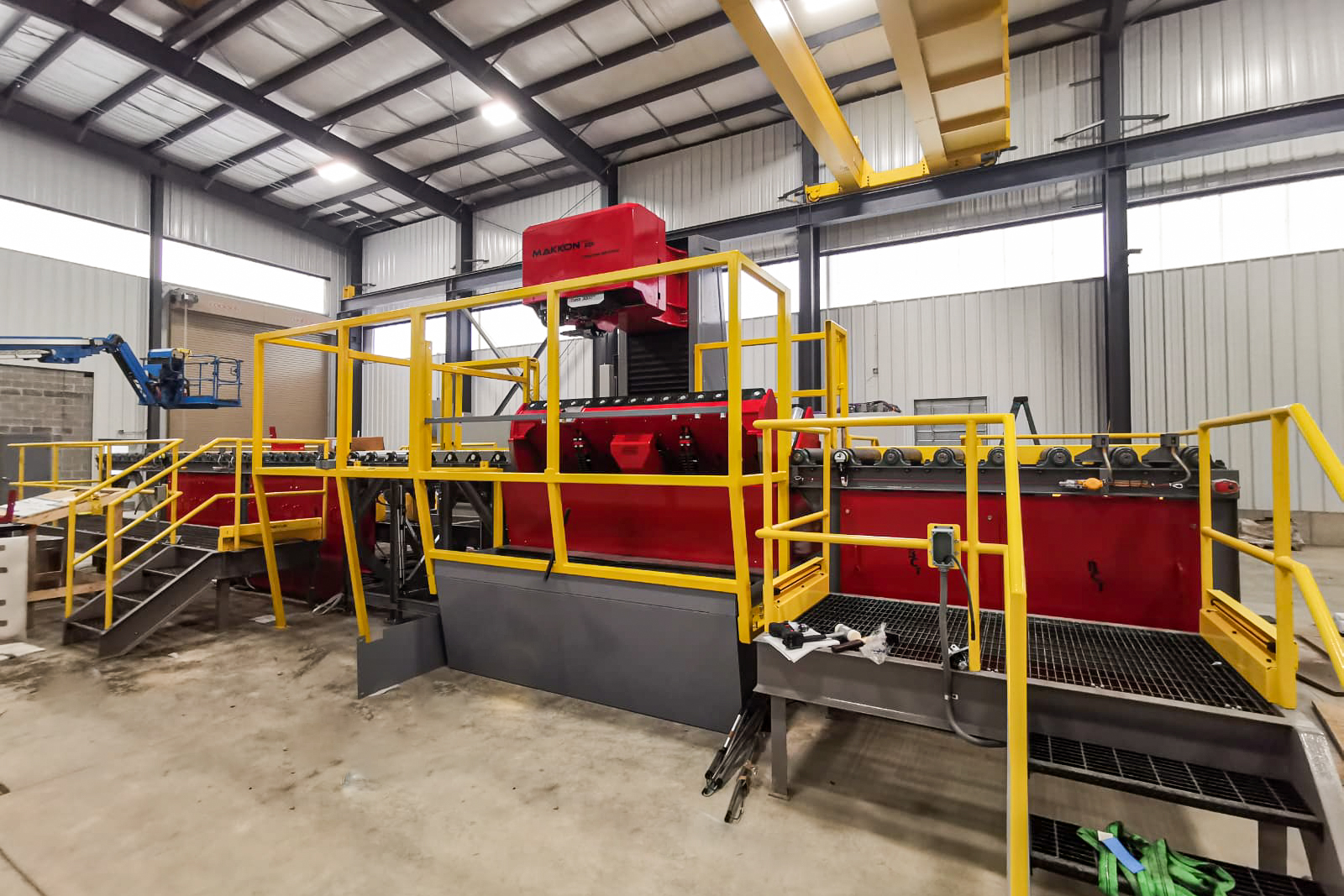

This was solved using a milling and brinell hardness testing machine with vertical drive and a 90° swivel table for workpiece manipulation, which brings the products into the respective test position. Two integrated, servo-controlled roller conveyors are attached to the existing roller conveyors and transport the workpieces to and from it. After the process, the milling pattern, test pattern and measurement results are displayed on the control panel.

Contact us


  • Total dimensions: 5000 x 3700 x 4000 mm
  • Swiveling angle: 90°
  • Traversing speed of products for testing: max. 50 mm/s
  • Weight of produc for testingt: max. 8 tons


  • Servoaxis: SEW Eurodrive
  • Decentralized servocontroller: SEW Eurodrive
  • Hardness tester: QATM
  • SPS Controlling System: Siemens S7 - 1511F
