Functionality

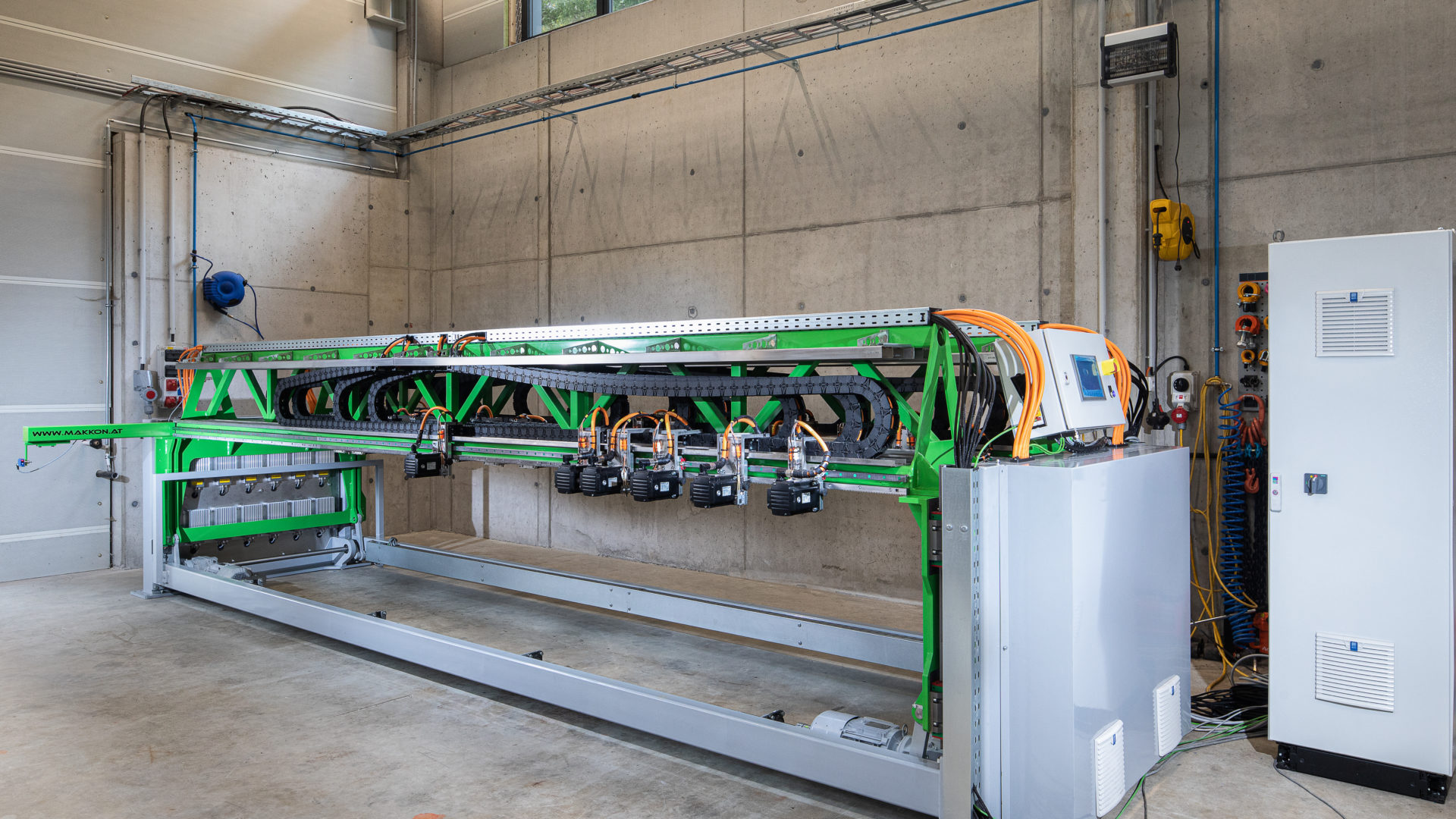

The fully automated lath marking system is currently the fastest cross marker on the world market in the wood industry.

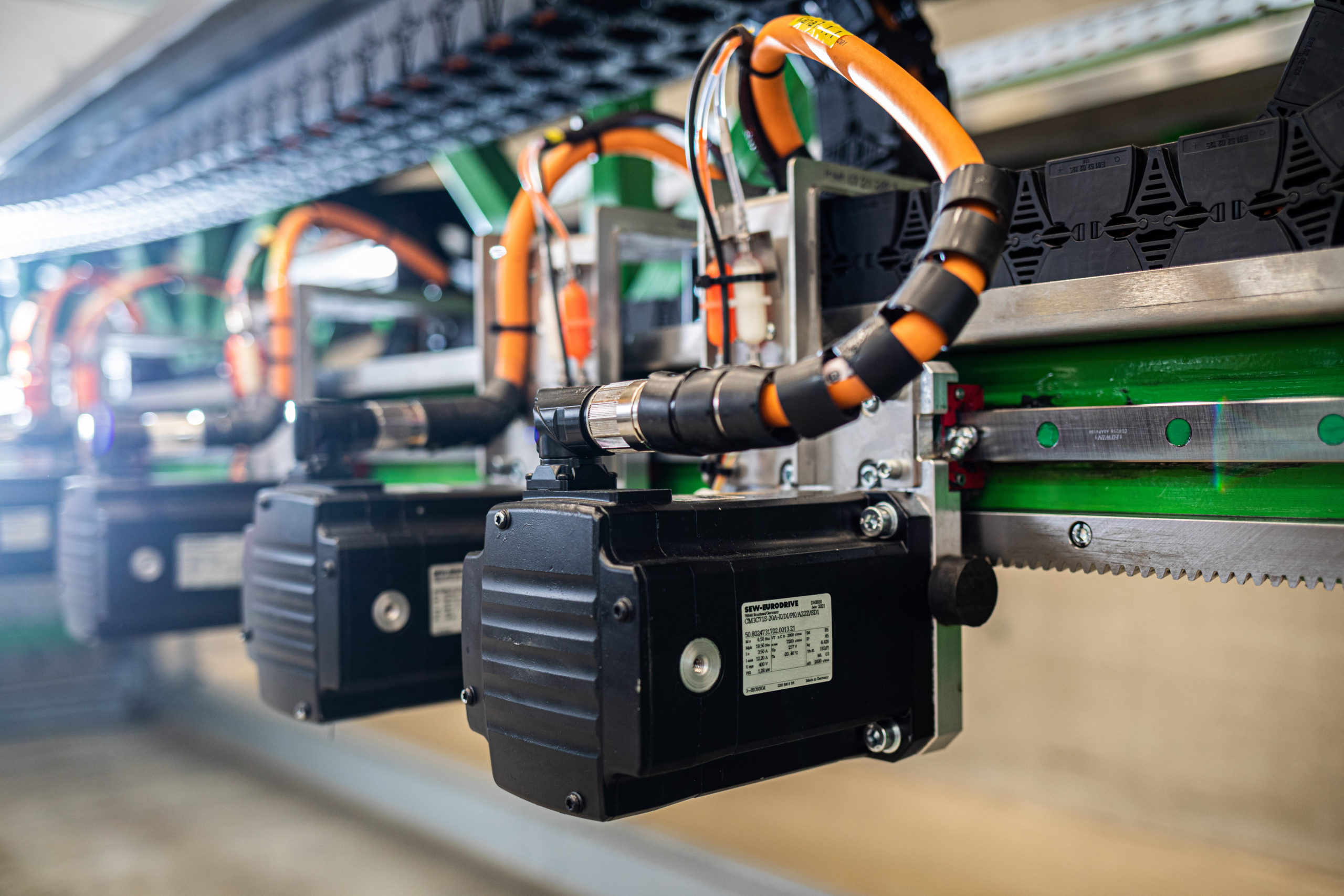

The machine marks problem areas in the wood, such as branches, which have to be cut out afterwards. This process is possible with the system within half a second per workpiece. The six marking heads automatically move to the required positions and mark the faulty areas of the board. Various safety devices have been set up to protect the machine and employees.

Contact us

Data

  • Dimensions: 7000 x 1700 x 1800mm (L x B x H)
  • Speed of marking cart: 5 m/s
  • Board conveyor speed: 100 m/s
  • Acceleration of marking heads: max. 20 m/s²
  • Control system: Decentralized
